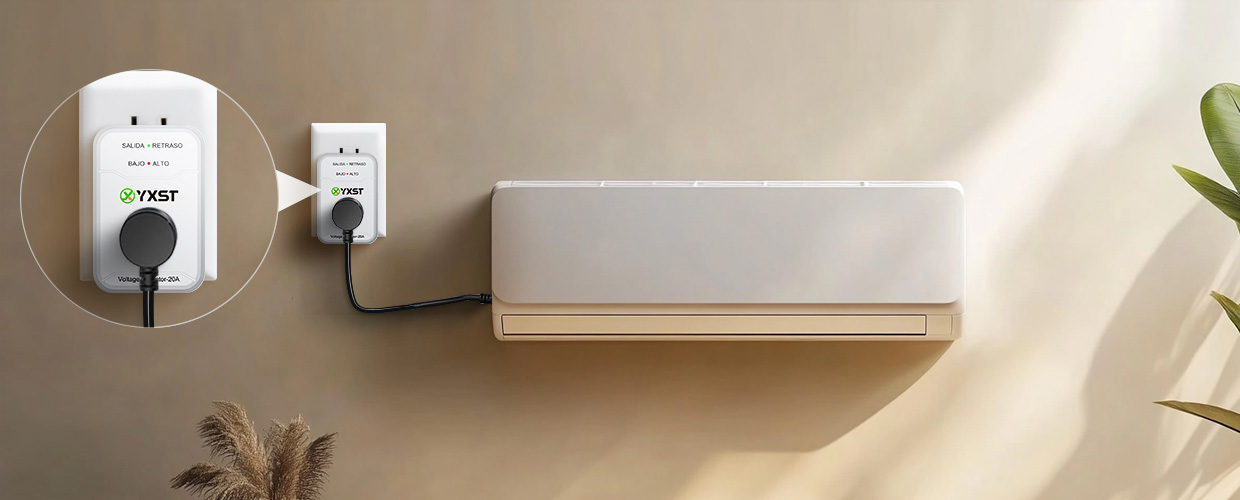

20A Small single outlet portable voltage protector for air conditioner N015 can reduce the occurrence of fire, prevent electrical damage, and reduce the harm of lightning to electrical equipment.
20A Portable Voltage Protector For Air Conditioner
N015 Voltage protector for air conditioner is used to measure single-phase AC active electric energy. It has overvoltage, undervoltage, and overcurrent protection functions. When overvoltage, undervoltage, or overcurrent fault occurs in the line, this product can instantly cut off the load to prevent the electrical equipment from burning.

20A Portable Voltage Protector For Air Conditioner Features
√ Flame retardant, the shell is made of PC flame retardant material, which is safer and more durable.
√ Suitable for electric heaters, wall-mounted air conditioners, electric ovens, blenders, microwave ovens, washing machines, TVs, refrigerators, coffee machines, etc.
√ Multiple protections, when the line has overvoltage, undervoltage or overcurrent faults, it can instantly cut off the power supply to protect the electrical equipment from damage.
Parameter
| Operating Voltage | 120V AC/220V AC |
| Operating Frequency | 50Hz-60Hz |
| Under Voltage Cut-off | 90V AC / 165V AC |
| Over Voltage Cut-off | 140V AC / 255V AC |
| Surge Protection | 140 Joules |
| Delay Time | 3min |
| Output Capacity | 20A,2400W / 20A,4400W |
| Packing | Double Blister |
| Warranty | 1 Years |

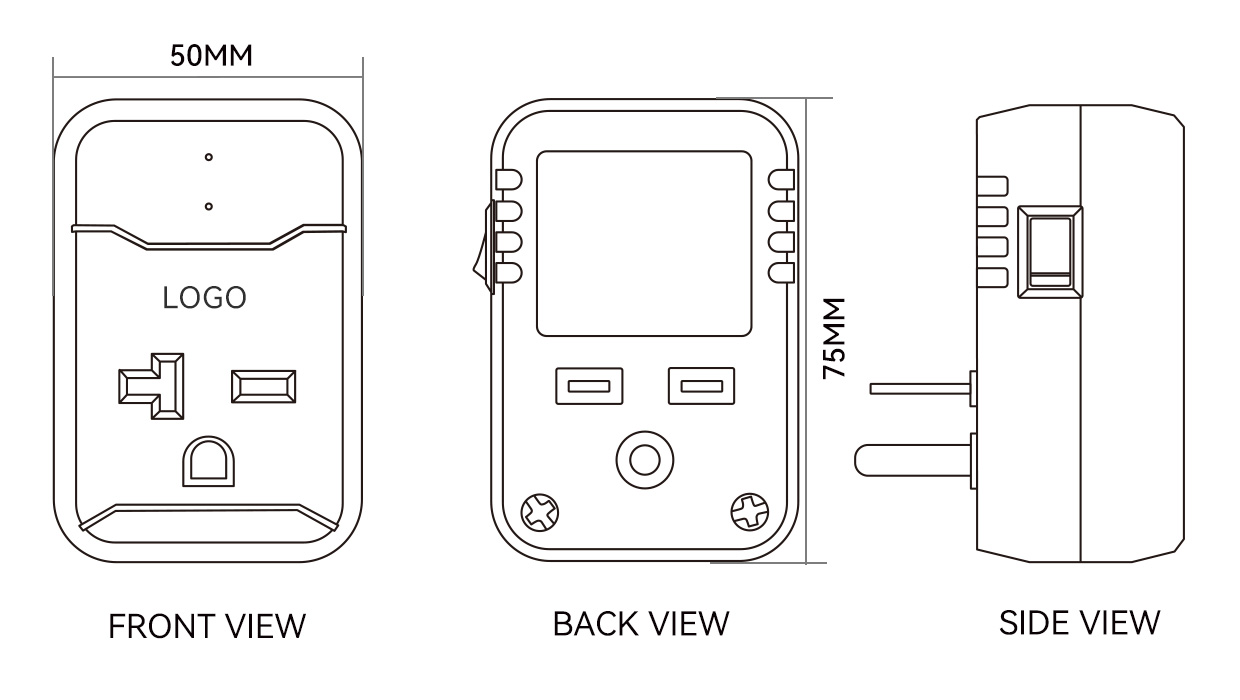

Dimension

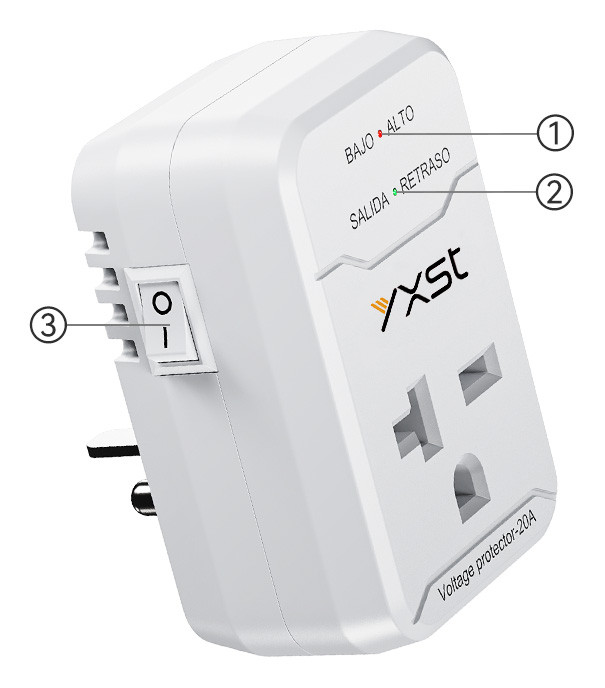

Instruction

| ① Red Indicator Flashing:HIP Red Indicator Lighting:LOP |
| ② Green Indicator Flashing:Delay Green Indicator Lighting:Normal voltage |
| ③ Switch |
Package
| PACKAGE INFO | CARTON | Q’TY | G.W | SINGLE PACK |
| 33.5*29.5*29.5CM | 100PCS | 10.8KGS | Color Box |
FAQ
Q: Why do you need a voltage protector?
A: Most electronics and appliances cannot withstand voltages exceeding their device limits. When a power surge occurs, a high peak current is generated, which causes an arc. The heat generated by the arc can damage electronic components and circuit boards. A voltage surge is a phenomenon that is beyond your control, and unfortunately, there is nothing you can do to prevent it from happening.
Q: What is the cause of overvoltage?
A: The main causes of these voltage surges in the power system are lightning pulses and switching pulses in the system. But overvoltage in the power system can also be caused by insulation faults, arc grounding and resonance, etc.
Q: What are the effects of overvoltage?
A: If it happens frequently, it will damage them. Overvoltage caused by surges may cause spark discharge and flashover between the phase line and the ground line at the weakest point of the network, gaseous/solid/liquid insulation breakdown, transformer and rotating machine failure.
Q: Can you produce according to samples?
A: Yes, we can produce according to your samples or technical drawings, but there is a minimum order quantity or you need to pay extra.
Q: Why should you buy from us instead of other suppliers?
A: With complete product specifications and rich varieties, we have more than 17 years of production, R&D and sales experience. The company team is young and energetic.
