20A Portable Voltage Protector For Air Conditioner
20A Small single outlet portable voltage protector for air conditioner N015 can reduce the occurrence of fire, prevent electrical damage, and reduce the harm of lightning to electrical equipment.
* Extend equipment life
* Microprocessor control
* Prevent overvoltage damage
* Prevent undervoltage damage
* Provides surge protection for AC voltage.
* Provides lightning/surge protection for AC voltage.
* Provides high/low voltage cut-off protection voltage protector.
* Provides necessary protection for your home electronic devices.
N015 Voltage protector for air conditioner is used to measure single-phase AC active electric energy. It has overvoltage, undervoltage, and overcurrent protection functions. When overvoltage, undervoltage, or overcurrent fault occurs in the line, this product can instantly cut off the load to prevent the electrical equipment from burning.
Features
√ Flame retardant, the shell is made of PC flame retardant material, which is safer and more durable.
√ Suitable for electric heaters, wall-mounted air conditioners, electric ovens, blenders, microwave ovens, washing machines, TVs, refrigerators, coffee machines, etc.
√ Multiple protections, when the line has overvoltage, undervoltage or overcurrent faults, it can instantly cut off the power supply to protect the electrical equipment from damage.

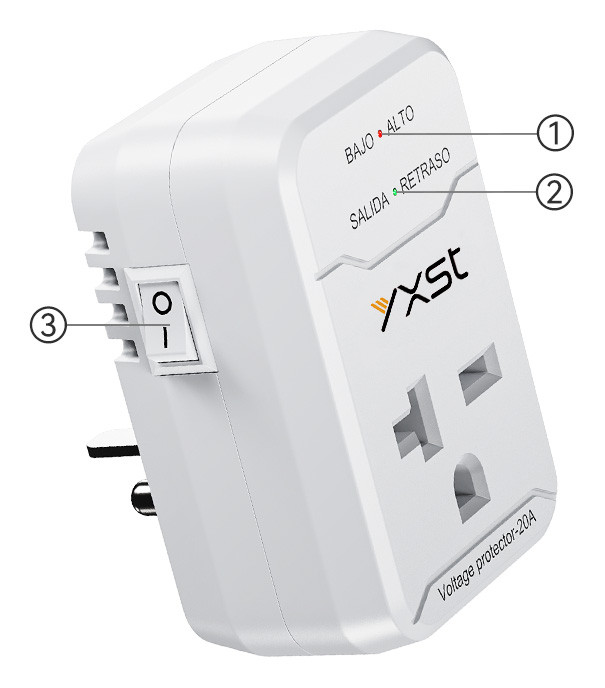

① Red Indicator Flashing：HIP Red Indicator Lighting：LOP
② Green Indicator Flashing：Delay Green Indicator Lighting：Normal voltage
③ Switch
PACKAGE INFO
CARTON
Q’TY
G.W
SINGLE PACK
33.5*29.5*29.5CM
100PCS
10.8KGS
Color Box
Operating Voltage
120V AC/220V AC
Operating Frequency
50Hz-60Hz
Under Voltage Cut-off
90V AC / 165V AC
Over Voltage Cut-off
140V AC / 255V AC
Surge Protection
140 Joules
Delay Time
3min
Output Capacity
20A,2400W / 20A,4400W
Packing
Double Blister
Warranty
1 Years
Q: Why do you need a voltage protector?
A: Most electronics and appliances cannot withstand voltages exceeding their device limits. When a power surge occurs, a high peak current is generated, which causes an arc. The heat generated by the arc can damage electronic components and circuit boards. A voltage surge is a phenomenon that is beyond your control, and unfortunately, there is nothing you can do to prevent it from happening.
Q: What is the cause of overvoltage?
A: The main causes of these voltage surges in the power system are lightning pulses and switching pulses in the system. But overvoltage in the power system can also be caused by insulation faults, arc grounding and resonance, etc.
Q: What are the effects of overvoltage?
A: If it happens frequently, it will damage them. Overvoltage caused by surges may cause spark discharge and flashover between the phase line and the ground line at the weakest point of the network, gaseous/solid/liquid insulation breakdown, transformer and rotating machine failure.
Q: Can you produce according to samples?
A: Yes, we can produce according to your samples or technical drawings, but there is a minimum order quantity or you need to pay extra.
Q: Why should you buy from us instead of other suppliers?
A: With complete product specifications and rich varieties, we have more than 17 years of production, R&D and sales experience. The company team is young and energetic.
Are you also worried about these issues regarding electricity use? Such as short circuit hazards, overload of high-power electrical appliances, leakage hazards, and lightning disasters. Household voltage protector N019-120 reduces the above risks. Its internal CPU controls the circuit board and has a 3-minute response protection power-off time to protect the safety of you and your family.
N020-220 AC Voltage Protector 220V | Electronic Wiring-Type Surge Protection
This device safeguards electrical appliances from voltage spikes, short circuits, and leakage currents through dual protection mechanisms:
✅ Over/Under Voltage Cutoff – Automatically disconnects power during unstable input (170V-275V).
✅ Multi-Layer Safety – Prevents arc flashes, overloads, and insulation failures.
Engineered with fire-retardant PC housing and silver-nickel alloy contacts, it maximizes circuit safety and stability for air conditioners.
N024S Protector de Voltaje surge protector adopts a fireproof PC casing, which is characterized by good heat resistance, with excellent performance from fire extinguish, and safety for home use.
Protector De Voltaje Surge Protector 20A Technical Data
When the voltage or current exceeds the rated value, the use of 0901 AVP automatic voltage protector for home can quickly cut off the power supply to prevent damage to equipment such as refrigerators, air conditioners, heaters, coolers, freezers, etc.
There are a wide variety of voltage protectors and voltage regulators available. If you find it difficult to choose the right product for your needs, do not worry. We are here to help.
Voltage protectors and voltage fluctuation protectors are not the same, although both aim to protect electrical systems from voltage-related issues. […]
N015 20A Voltage Protector 140 Joules
